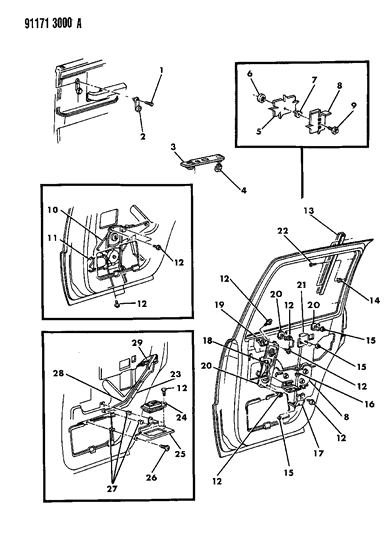

Diagram (1 of 1): BODY - DOORS AND RELATED PARTS DOOR, REAR GLASS, REGULATORS AND CONTROLS C BODY
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
6027221SCREW, Regulator Handle
2
4520378HANDLE, Window Regulator- COVER, Handle
- Require Quantity: 2
2
4520701HANDLE, Window Regulator- HANDLE, Window Regulator
- Require Quantity: 2
2
4520787HANDLE, Window Regulator- SPACER
- Require Quantity: 2
3
4521210BEZEL, Trim Panel- w/Electric Windows, Right
- Fitting Vehicle Options: CS
3
4521211BEZEL, Trim Panel- w/Electric Windows, Left
- Fitting Vehicle Options: CS
3
4521212BEZEL, Trim Panel- w/Electric Windows, Right
- Fitting Vehicle Options: DC-H,P
3
4521213BEZEL, Trim Panel- w/Electric Windows, Left
- Fitting Vehicle Options: DC-H,P
3
4521214BEZEL, Trim Panel- w/o Electric Windows, Right
- Fitting Vehicle Options: D-H,P
3
4521215BEZEL, Trim Panel- w/o Electric Windows, Left
- Fitting Vehicle Options: D-H,P
5
4512984GLASS, Door, Right 5
4512985GLASS, Door, Right
8
4512702LIFT PLATE, Glass, Right 8
4512703LIFT PLATE, Glass, Right
10
4445378REGULATOR, Electric Window, Right- BRACKET, Electric Regulator Downstop, Right
10
4445379REGULATOR, Electric Window, Right- BRACKET, Electric Regulator Downstop, Left
10
4445380REGULATOR, Electric Window, Right- BUMPER, Downstop
- Require Quantity: 2
10
4480236REGULATOR, Electric Window, Right- REGULATOR, Electric Window, Right
10
4480237REGULATOR, Electric Window, Right- REGULATOR, Electric Window, Left
11
4615618MOTOR and MECHANISM, Regulator, Right- MOTOR and MECHANISM, Regulator, Right
11
13
4415316CHANNEL, Glass, Rear, Right- CHANNEL, Glass, Rear, Right
13
4415317CHANNEL, Glass, Rear, Right- CHANNEL, Glass, Rear, Left
14
6033184
GROMMET, Channel Att.
17
4548216BRACKET, Guide Track Lower
18
4396749REGULATOR, Manual, Right- SPRING, Regulator Assist
- Require Quantity: 2
18
4480284REGULATOR, Manual, Right 18
4480285REGULATOR, Manual, Right
21
4548210TRACK, Guide, Right 21
4548211TRACK, Guide, Right
24
4396860HOUSING, Remote Control, Right- HOUSING, Remote Control, Right
24
25
4415146BRACKET, Remote Control, Right- BRACKET, Remote Control, Right
25
28
4396848LINK, Remote Control to Latch, Right- LINK, Remote Control to Latch, Right
28
4396849LINK, Remote Control to Latch, Right- LINK, Remote Control to Latch, Left
29
4396856LINK, Latch Locking, Right- LINK, Latch Locking, Right
29
4396857LINK, Latch Locking, Right- LINK, Latch Locking, Left
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1991
Chrysler New Yorker Salon parts. Parts like Door, Rear Glass, Regulators And Controls are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.0L, 6 Cyl 3.3L. Transmission: 4-Speed Automatic Transmission.
