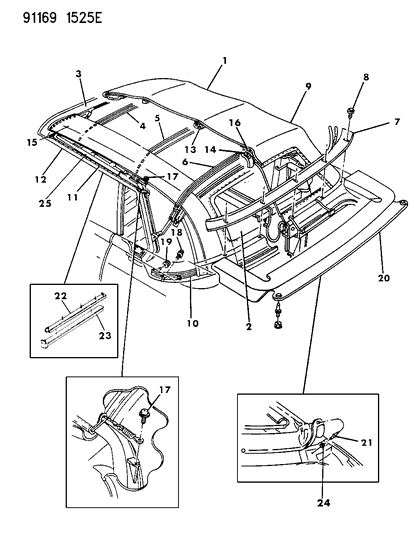

Diagram (1 of 1): BODY - SHEET METAL EXCEPT DOORS CONVERTIBLE TOP P BODY 27

1991 Dodge Shadow Convertible Top Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
5241760
COVER ASSEMBLY
Quartz
1
5241761
COVER ASSEMBLY
- White
1
5241762
COVER ASSEMBLY
- Black
1
5241970
COVER ASSEMBLY
- Bordeaux
1
5241971
COVER ASSEMBLY
- Buckskin
1
5241972
COVER ASSEMBLY
- Blue

2
5241763
BACKLITE ASSEMBLY
Bordeaux
2
5241764
BACKLITE ASSEMBLY
- Buckskin
2
5241765
BACKLITE ASSEMBLY
- Quartz
2
5241766
BACKLITE ASSEMBLY
- White
2
5241767
BACKLITE ASSEMBLY
- Black
2
5241978
BACKLITE ASSEMBLY
- Blue

3
5241471
#1 BOW ASSEMBLY
Up To 01/01/91
3
5242090
#1 BOW ASSEMBLY
- After 01/01/91

4
5241476
#2 BOW ASSEMBLY

5
5241485
#3 BOW ASSEMBLY

6
5241484
#4 BOW ASSEMBLY

7
5241514
PLATE ASSEMBLY, Top Tensioner

8
5241855
SCREW

9
5241856
STAY, Rear, Right
STAY, Rear, Right
9
5241857
STAY, Rear, Right
- STAY, Rear, Left

10
5241513
TACK STRIP ASSEMBLY, Rear

11
5241510
CABLE ASSEMBLY, Side Retention
- Require Quantity: 2

12
5241511
RETAINER, Cover Assembly Top Front

13
5241509
RETAINER, Cover Assembly Top (#3 Bow)

14
5241506
RETAINER, Inner Outer (#4 Bow)

15
5241504
STAY, Side Pad
- Require Quantity: 2

16
5241507
INSERT, Retainer (#4 Bow)

17
5241818
SCREW and WASHER Assembly

20
5241502
BOOT ASSEMBLY
Quartz
20
5241987
BOOT ASSEMBLY
- Bordeaux
20
5241988
BOOT ASSEMBLY
- Chanpagne
20
5241989
BOOT ASSEMBLY
- Slate Blue

21
5241189
RIVET (1/8 x .125)

22
5241444
RETAINER ASSEMBLY, Right
RETAINER ASSEMBLY, Right
22
5241445
RETAINER ASSEMBLY, Right
- RETAINER ASSEMBLY, Left

23
5241428
WEATHERSTRIP ASSEMBLY, Front Door Glass , Right
WEATHERSTRIP ASSEMBLY, Front Door Glass , Right
23
5241429
WEATHERSTRIP ASSEMBLY, Front Door Glass , Right
- WEATHERSTRIP ASSEMBLY, Front Door Glass , Left

24
5241925
STUD

25
5241844
SIDE RAIL , Right
SIDE RAIL , Right
25
5241845
SIDE RAIL , Right
- SIDE RAIL , Left

5241841
BOLT, Bow and Rail Attaching

5242083
BUMPER, #1 Bow
