2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.Electrical Wiring, Engine 3.0L Diesel [EXG]
    2017 Ram ProMaster 1500 Wiring, Engine Diagram 1
  • 2.Electrical Wiring, Engine 3.6L [ERB]
    2017 Ram ProMaster 1500 Wiring, Engine Diagram 2
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price
Part No. &
Part Description
  • 2
    4727658AD

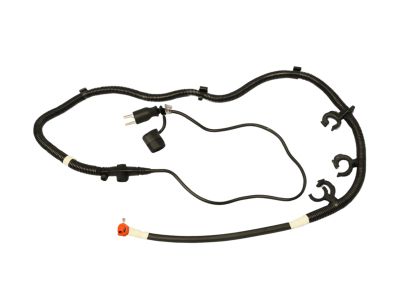

    WIRING Radiator Fan
    [HAA]
    • Fitting Vehicle Options:
      1 - Lt. Duty DODGE 2WD, 11 - VAN WHEEL BASE , 12 - 113 WB, 13 - 119 WB, EXG - 4 Cyl 3.0L ECO Diesel
    • Replaced By:
      4727658AF
    MSRP: $226.00
    $149.81
    1
    Add To Cart
  • 2
    4727792AE

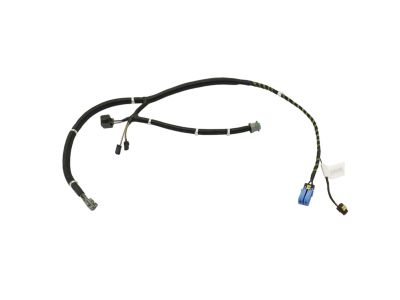

    WIRING Radiator Fan
    [HCD]
    • Fitting Vehicle Options:
      1 - Lt. Duty DODGE 2WD, 11 - VAN WHEEL BASE , 12 - 113 WB, 13 - 119 WB, ERB - 6 Cyl 3.6L 24V VVT, EXG - 4 Cyl 3.0L ECO Diesel
    • Replaced By:
      4727792AG
    MSRP: $147.00
    $98.27
    1
    Add To Cart
  • 4
    68094656AA
    RELAY Radiator Fan
    [HAA]
    • Fitting Vehicle Options:
      1 - Lt. Duty DODGE 2WD, 11 - VAN WHEEL BASE , 12 - 113 WB, 13 - 119 WB, ERB - 6 Cyl 3.6L 24V VVT
    • Require Quantity:
      2
    • Package Quantity:
      1
  • 4
    68094656AA
    RELAY Radiator Fan
    • Fitting Vehicle Options:
      1 - Lt. Duty DODGE 2WD, 11 - VAN WHEEL BASE , 12 - 113 WB, 13 - 119 WB, ERB - 6 Cyl 3.6L 24V VVT, EXG - 4 Cyl 3.0L ECO Diesel
  • 8
    4727659AE
    WIRING Radiator Fan
    [HAA]
    • Fitting Vehicle Options:
      1 - Lt. Duty DODGE 2WD, 11 - VAN WHEEL BASE , 12 - 113 WB, 13 - 119 WB, ERB - 6 Cyl 3.6L 24V VVT
    • Replaced By:
      4727659AG
    MSRP: $320.00
    $213.54
    1
    Add To Cart
  • 8
    4727792AE
    WIRING Radiator Fan
    [HCD]
    • Fitting Vehicle Options:
      1 - Lt. Duty DODGE 2WD, 11 - VAN WHEEL BASE , 12 - 113 WB, 13 - 119 WB, ERB - 6 Cyl 3.6L 24V VVT, EXG - 4 Cyl 3.0L ECO Diesel
    • Replaced By:
      4727792AG
    MSRP: $147.00
    $98.27
    1
    Add To Cart
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 2017 Ram ProMaster 1500 parts. Parts like Wiring, Engine are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 3.0L Diesel, 6 Cyl 3.6L. Transmission: 6-Speed Automatic Transmission.
