Make sure this part fits

Mopar 56041018AD Map Sensor

2002-2013 Mopar 56041018AD

Customer Questions & Expert Answers (16)
56041018AD Mopar Map Sensor Product Photo 1 of 4
56041018AD Mopar Map Sensor Product Photo 1 of 4
56041018AD Mopar Map Sensor Product Photo 2 of 4
56041018AD Mopar Map Sensor Product Photo 3 of 4
56041018AD Mopar Map Sensor Product Photo 4 of 4

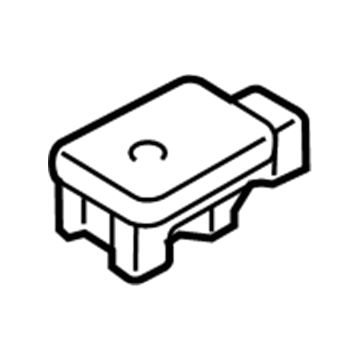

56041018AD Mopar Map Sensor Illustration 1 of 1
  • Part Description
    Sensor Map
  • Replaces
    56041018AC
  • Manufacturer
    Mopar
Make sure this part fits
$98.61 MSRP: $149.00
You Save: $50.39 (34%)
1
ADD TO CART
  • Related Parts
  • Specifications
  • Fitment
  • Q&A

  • 56041018AD Map Sensor is Ref No. 7 in the diagram below

    2007 Dodge Grand Caravan Map Sensor Diagram for 56041018AD
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts

  • Product Specifications

    BrandGenuine Mopar
    Manufacturer Part Number56041018AD
    Part DescriptionSensor Map
    Other NamesM.A.P. Sensor, MAP Sensor
    Item Dimensions1.9 x 2.6 x 3.8 inches
    Item Weight0.40 Pounds
    ConditionNew
    Replaces56041018AC
    ManufacturerMopar
    SKU56041018AD
    WarrantyThis genuine Mopar part is guaranteed by Mopar's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Engine Important vehicle option details
    2007-2010 Chrysler 3008 Cyl 6.1LC AWD, C RWD, C SRT8 RWD, Touring RWD
    2007-2009 Chrysler Aspen8 Cyl 4.7LLimited 2WD, Limited 4WD
    2005-2006 Chrysler Pacifica6 Cyl 3.8LBase FWD
    2004-2007 Chrysler Town & Country6 Cyl 3.3L, 6 Cyl 3.8LBase, EL, EX, Limited AWD, Limited FWD, LX FWD, LXi FWD, Touring AWD, Touring FWD
    2004-2007 Dodge Caravan6 Cyl 3.3LC/V, SE, Sport, SXT
    2008-2010 Dodge Challenger8 Cyl 6.1LR/T, SRT8
    2007-2010 Dodge Charger8 Cyl 6.1LBase RWD, R/T AWD, R/T RWD, SRT8 RWD
    2003-2011 Dodge Dakota6 Cyl 3.7L, 8 Cyl 4.7LClub Cab 2WD, Club Cab 4WD, Laramie Club Cab 2WD, Laramie Club Cab 4WD, Laramie Crew Cab 2WD, Laramie Crew Cab 4WD, Laramie Extended Cab 2WD, Laramie Extended Cab 4WD, Laramie Quad Cab 2WD, Laramie Quad Cab 4WD, Regular Cab 2WD, Regular Cab 4WD, SLT Club Cab 2WD, SLT Club Cab 4WD, SLT Crew Cab 2WD, SLT Crew Cab 4WD, SLT Extended Cab 2WD, SLT Extended Cab 4WD, SLT Quad Cab 2WD, SLT Quad Cab 4WD, SLT Regular Cab 2WD, SLT Regular Cab 4WD, Sport Club Cab 2WD, Sport Club Cab 4WD, Sport Crew Cab 2WD, Sport Crew Cab 4WD, Sport Extended Cab 2WD, Sport Extended Cab 4WD, Sport Quad Cab 2WD, Sport Quad Cab 4WD, Sport Regular Cab 2WD, Sport Regular Cab 4WD, ST Club Cab 2WD, ST Club Cab 4WD, ST Crew Cab 2WD, ST Crew Cab 4WD, ST Extended Cab 2WD, ST Extended Cab 4WD, ST Quad Cab 2WD, ST Quad Cab 4WD, SXT Crew Cab 2WD, SXT Crew Cab 4WD, SXT Extended Cab 2WD, SXT Extended Cab 4WD, TRX Crew Cab 2WD, TRX Crew Cab 4WD, TRX Extended Cab 2WD, TRX Extended Cab 4WD
    2002-2009 Dodge Durango6 Cyl 3.7L, 8 Cyl 4.7L, 8 Cyl 5.7LAdventurer 2WD, Adventurer 4WD, Limited 2WD, Limited 4WD, SE 2WD, SE 4WD, SLT 2WD, SLT 4WD, SLT Plus 2WD, SLT Plus 4WD, Sport 2WD, Sport 4WD, ST 2WD, ST 4WD, SXT 2WD, SXT 4WD
    2004-2007 Dodge Grand Caravan6 Cyl 3.3L, 6 Cyl 3.8LC/V, EL, ES AWD, ES FWD, EX, SE, Sport AWD, Sport FWD, SXT AWD, SXT FWD
    View More

  • Customer Questions & Expert Answers

    Q:
    Please cross check for fit. Posted by MoparPartsGiant Specialist
    A:
    You can Select Your Vehicle to check if 56041018AD fits your vehicle.
    Posted by MoparPartsGiant Specialist
    Installation and Repair Tips
    Q:
    Where is the MAP Sensor Located on Chrysler Town & Country? Posted by Customer
    A:
    The MAP sensor is on the intake manifold of all engines. To remove the MAP sensor, disconnect the cable from the negative terminal of the battery and then disconnect the electrical connector from the sensor. Slide the red lock to the right, depress the release tabs, and disconnect the electrical connector. Remove the sensor retaining screws and take out the sensor. To install, reverse the removal process.
    Posted by MoparPartsGiant Specialist
    Q:
    Where is the MAP Sensor Located on Dodge Caravan? Posted by Customer
    A:
    The MAP sensor is on the intake manifold of all engines. To remove the MAP sensor, disconnect the cable from the negative terminal of the battery and then disconnect the electrical connector from the sensor. Slide the red lock to the right, depress the release tabs, and disconnect the electrical connector. Remove the sensor retaining screws and take out the sensor. To install, reverse the removal process.
    Posted by MoparPartsGiant Specialist
    Q:
    Where is the MAP Sensor Located on a Dodge Charger? Posted by Customer
    A:
    To remove the MAP sensor on a V6 engine, unlock and disconnect the electrical connector, then rotate the sensor counterclockwise 1/4-turn and pull it out. Inspect the 0-ring and replace if necessary. To install, reverse the removal steps. On a V8 engine, the MAP sensor is located near the firewall. Disconnect the electrical connector, rotate the sensor 1/4-turn counterclockwise and remove it. Inspect the 0-ring and replace if necessary. To install, place it in position, insert it into the mounting hole and turn it 1/4-turn clockwise. Reverse the removal steps to complete installation.
    Posted by MoparPartsGiant Specialist
    Q:
    What Role Does the MAP Sensor Play in Engine Performance on Dodge Nitro? Posted by Customer
    A:
    The manifold absolute pressure sensor is responsible for monitoring changes in intake manifold pressure, which are caused by variations in engine load and speed. The voltage signal received by the PCM ranges from 0.5 volts at closed throttle (high vacuum) to 4.5 volts at wide-open throttle low vacuum.
    Posted by MoparPartsGiant Specialist
    Q:
    What Role Does the MAP Sensor Play in Engine Performance on Jeep Liberty? Posted by Customer
    A:
    The manifold absolute pressure sensor is responsible for monitoring changes in intake manifold pressure, which are caused by variations in engine load and speed. The voltage signal received by the PCM ranges from 0.5 volts at closed throttle (high vacuum) to 4.5 volts at wide-open throttle low vacuum.
    Posted by MoparPartsGiant Specialist
    Q:
    How do you remove the MAP Sensor for the 2009 Chrysler 300? Posted by Customer
    A:
    Disconnect the electrical connector by pulling out the lock and depressing the release tab. Rotate the MAP sensor 1/4-turn counterclockwise and remove it from the intake manifold.
    Posted by MoparPartsGiant Specialist
    Q:
    What are the steps for removing the MAP Sensor on the 2009 Dodge Challenger? Posted by Customer
    A:
    Remove the engine cover. Disconnect the electrical connector in the same manner as for the V6. Rotate the MAP sensor a quarter turn counterclockwise to remove it, or unscrew the bolt if applicable. Remove the old O-ring and inspect it for damage; replace it if necessary.
    Posted by MoparPartsGiant Specialist
    Q:
    How do you disconnect the electrical connector from the MAP Sensor for the 2008 Dodge Dakota? Posted by Customer
    A:
    Disconnect the electrical connector from the MAP sensor by sliding the release lock away from the sensor, then depress the release tab and pull off the connector.
    Posted by MoparPartsGiant Specialist
    Q:
    How do you disconnect the electrical connector from the MAP Sensor for the 2007 Dodge Durango? Posted by Customer
    A:
    Disconnect the electrical connector from the MAP sensor by sliding the release lock away from the sensor, then depress the release tab and pull off the connector.
    Posted by MoparPartsGiant Specialist
    Q:
    How is the Throttle Position Sensor (TPS) and MAP Sensor diagnosed for the 2006 Dodge Grand Caravan? Posted by Customer
    A:
    To diagnose the Throttle Position Sensor (TPS), disconnect the electrical connector, use a digital ohmmeter to check the resistance readings while moving the throttle lever, and replace the TPS if readings are incorrect.
    Posted by MoparPartsGiant Specialist
    Q:
    How do you remove the MAP Sensor for the 2008 Dodge Magnum? Posted by Customer
    A:
    Disconnect the electrical connector by pulling out the lock and depressing the release tab. Rotate the MAP sensor 1/4-turn counterclockwise and remove it from the intake manifold.
    Posted by MoparPartsGiant Specialist
    Q:
    How do you remove the MAP Sensor for the 2009 Dodge Ram 1500? Posted by Customer
    A:
    Disconnect the electrical connector from the MAP sensor. Remove the MAP sensor mounting screw and remove the MAP sensor from the intake manifold. Remove the MAP sensor 0-ring and inspect it for cracks, tears, and deterioration. If the 0-ring is damaged, replace it.
    Posted by MoparPartsGiant Specialist
    Q:
    How do you install the MAP Sensor for the 2010 Jeep Grand Cherokee? Posted by Customer
    A:
    To install the MAP sensor, place it in position, insert it into the mounting hole in the intake manifold, and turn it clockwise. Finally, reverse the steps for installation.
    Posted by MoparPartsGiant Specialist
    Q:
    What should be done if the accelerator pedal position sensor or MAP Sensor is faulty for the 2007 Jeep Wrangler? Posted by Customer
    A:
    The accelerator pedal position sensor, integral to the pedal assembly in newer models, requires complete assembly replacement if faulty.
    Posted by MoparPartsGiant Specialist
    Q:
    Where is the MAP Sensor located for the 2011 Ram 1500? Posted by Customer
    A:
    The MAP sensor is located on the top of the intake manifold.
    Posted by MoparPartsGiant Specialist
    See Complete Installation and Repair Tips

Genuine Mopar Part 56041018AD, the Right Choice

To ensure reliability, purchase Mopar part # 56041018AD Map Sensor. It is sometimes referred to as MAP Sensor. The OEM parts should be used when the Mopar owners want to maximize their driving experience. The high-tech factories that produce these parts utilize sophisticated technology specifically designed to meet stringent factory requirements. Additionally, they are thoroughly tested and can thus be used with reliability by Mopar owners. This part fits specific Chrysler 300, Pacifica, and Town & Country models. It fits Dodge Dakota, Ram 1500, Ram 2500. It also fits Jeep Grand Cherokee, Liberty, and Wrangler. This also fits Ram 1500 and Dakota.

MoparPartsGiant.com is a leading supplier of genuine Mopar parts and accessories such as 56041018AD Map Sensor. Wondering where to find exceptional quality and affordable OEM Mopar parts? You have already come to the right place. Our website boasts a huge selection of genuine Mopar parts at attractive prices. Further, all parts come with a manufacturer's warranty. For detailed Jeep parts information, click here.
