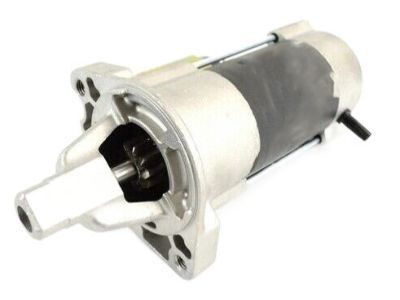

Genuine Chrysler Town & Country Starter Motor

Chrysler Town & Country Starter Motor Parts Questions & Answers

• Starter Motor
  4686045AD
  Q: How to Remove and Install a Starter Motor?

  A: Disconnect the battery and solenoid cables, then remove the starter mounting bolts. Raise the vehicle and remove the B+ cable and solenoid connector. Remove the starter and spacer, and install in reverse. Don't forget the spacer and to tighten the bolts.
• Starter Motor Reman
  R4748046AC
  Q: How Can I Troubleshoot a Malfunctioning Starting Circuit and Starter Motor?

  A: If the starting circuit malfunctions, do not immediately assume the starter is at fault. Check the battery cable clamps for cleanliness and tightness, inspect the battery cables, and test the battery's condition. Examine the starter solenoid wiring and connections, ensure starter mounting bolts are tight, and verify the ignition switch circuit's correct operation. Check the Transmission Range switch (automatic transaxle) or clutch start switch (manual transaxle) and their adjustments. Also, test the starter relay located in the fuse/relay box in the engine compartment. If the starter does not engage when the ignition switch is turned to start, check for battery voltage at the solenoid to confirm if it's receiving the correct signal from the ignition switch. Inspect fuses and relays related to the starting system if voltage is absent. If the starter turns over slowly, perform a cranking voltage and current draw test with the starter assembly on the engine. The battery voltage should not drop below 8.0 volts (manual transaxle) or 8.5 volts (automatic transaxle) during cranking, and the current draw should be between 250-400 amps. If values are off, replace the starter. If the starter receives voltage but doesn't activate, remove and bench-test the starter/solenoid assembly. Verify proper solenoid and starter motor function, considering rare cases of engine seizure.
