How to check and replace the ignition coil on Jeep Cherokee?

To replace the ignition coil on most models, disconnect the negative battery cable and locate the ignition coil. If necessary, unscrew the mounting bracket bolts to remove the coil. Disconnect the wires from the coil's terminals. Use an ohmmeter to test the resistance at the primary terminal and ground, the positive and negative primary terminals, and the negative primary and high voltage terminals. If any tests fail, replace the coil. To do so, disconnect the wires from the coil's terminals, remove the mounting bracket bolts and the coil. Install the new coil in reverse order. For 2000 and later inline six-cylinder models, remove and clean the ignition coil rail assembly. Check for damage and test the coil primary resistance at terminals 2 and 1, 2 and 3, and 2 and If the resistance is out of range or if there's damage, replace the entire assembly. To replace, remove the assembly, disconnect the electrical connector, and install the new assembly, ensuring all spark plug boots are properly seated. Secure with mounting bolts and reconnect the electrical connector.

Genuine Jeep Cherokee Ignition Coil

Ignition Coil Resistor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 Ignition Coils found

View related parts
Jeep Cherokee Electrical Ignition Coil
Part Number: 5149168AI
$86.63 MSRP: $129.00
You Save: $42.37 (33%)
ADD TO CART
Product Specifications
- Other Name: Coil-Ignition
- Replaced by: 5149168AJ
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2014-2019 Jeep Cherokee | Latitude AWD, Latitude FWD, Latitude Plus AWD, Latitude Plus FWD, Limited AWD, Limited FWD, Overland AWD, Overland FWD, Sport AWD, Sport FWD, Trailhawk AWD | 6 Cyl 3.2L
View related parts
Jeep Cherokee Ignition Coil
Part Number: 5149168AJ
$86.63 MSRP: $129.00
You Save: $42.37 (33%)
ADD TO CART
Product Specifications
- Other Name: Coil-Ignition; Coil Assembly, Ignition Coil
- Replaces: 5149168AI, 5149168AH
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2014-2022 Jeep Cherokee | Latitude AWD, Latitude FWD, Latitude Lux AWD, Latitude Lux FWD, Latitude Plus AWD, Latitude Plus FWD, Limited AWD, Limited FWD, Overland AWD, Overland FWD, Sport AWD, Sport FWD, Trailhawk AWD | 6 Cyl 3.2 L GAS, 6 Cyl 3.2L
View related parts

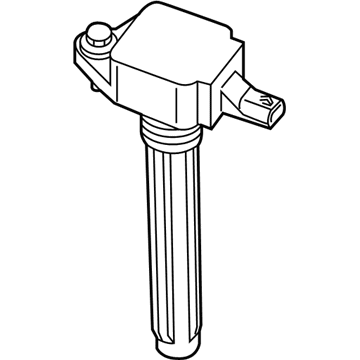

Jeep Cherokee Ignition Coil
Part Number: 68242286AB
$81.00 MSRP: $120.00
You Save: $39.00 (33%)
ADD TO CART
Product Specifications
- Other Name: Coil-Ignition; Ignition Coil Screw, Side Shield Screw
- Replaces: 68080580AB, 68242286AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2014-2023 Jeep Cherokee | Latitude AWD, Latitude FWD, Latitude Lux AWD, Latitude Lux FWD, Latitude Plus AWD, Latitude Plus FWD, Limited AWD, Limited FWD, Overland AWD, Overland FWD, Sport AWD, Sport FWD, Trailhawk AWD | 4 Cyl 2.4 L GAS, 4 Cyl 2.4L
View related parts
Jeep Cherokee I Sheet-Ignition Coil
Part Number: 68420587AA
$32.21 MSRP: $46.10
You Save: $13.89 (31%)
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2015-2018 Jeep Cherokee | Latitude AWD, Latitude FWD, Latitude Plus AWD, Latitude Plus FWD, Limited AWD, Limited FWD, Overland FWD, Sport AWD, Sport FWD, Trailhawk AWD | 4 Cyl 2.4L
View related parts
Jeep Cherokee Ignition Coil
Part Number: 68080580AB
$81.00 MSRP: $120.00
You Save: $39.00 (33%)
ADD TO CART
Product Specifications
- Other Name: Coil-Ignition
- Replaced by: 68242286AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2014-2015 Jeep Cherokee | Latitude AWD, Latitude FWD, Limited AWD, Limited FWD, Sport AWD, Sport FWD, Trailhawk AWD | 4 Cyl 2.4L
View related parts
Jeep Cherokee Ignition Coil
Part Number: 68242286AA
$81.00 MSRP: $120.00
You Save: $39.00 (33%)
ADD TO CART
Product Specifications
- Other Name: Coil-Ignition
- Replaced by: 68242286AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2016-2018 Jeep Cherokee | Latitude AWD, Latitude FWD, Latitude Plus AWD, Latitude Plus FWD, Limited AWD, Limited FWD, Overland FWD, Sport AWD, Sport FWD, Trailhawk AWD | 4 Cyl 2.4L
View related parts
Jeep Cherokee Ignition Coil
Part Number: 4797293
$274.29 MSRP: $415.00
You Save: $140.71 (34%)
ADD TO CART
Product Specifications
- Other Name: Coil/Ign-Ignition ; Coil, 4-6-8 Cyl. (Optional W/5234610)
- Replaced by: 4797293AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1997 Jeep Cherokee | 2 Door Sport Utility 2WD, 2 Door Sport Utility 4WD, 4 Door Sport Utility 2WD, 4 Door Sport Utility 4WD, 4 Door Sport Utility RHD 2WD, 4 Door Sport Utility RHD 4WD | 4 Cyl 2.5L, 6 Cyl 4.0L
View related parts
Jeep Cherokee Ignition Coil
Part Number: 68211953AA
$100.17 MSRP: $151.00
You Save: $50.83 (34%)
Product Specifications
- Other Name: Coil-Ignition
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2019-2023 Jeep Cherokee | Latitude AWD, Latitude FWD, Latitude Lux AWD, Latitude Lux FWD, Latitude Plus AWD, Latitude Plus FWD, Limited AWD, Limited FWD, Overland AWD, Overland FWD, Trailhawk AWD | 4 Cyl 2.0 L GAS, 4 Cyl 2.0L
View related parts
Jeep Cherokee Ignition Coil Ignition
Part Number: T1031135
Product Specifications
- Other Name: Coil-Ignition Engine Ignition; Ignition Coil
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1984-1990 Jeep Cherokee | 4 Cyl 2.5L, 6 Cyl 4.0L
View related parts
Jeep Cherokee Ignition Coil Ignition
Part Number: 56041476AA
Product Specifications
- Other Name: Coil/Ign-Ignition
- Replaced by: 56041476AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2000-2001 Jeep Cherokee | Classic 4 Door 2WD, Classic 4 Door 4WD, Limited 4 Door 2WD, Limited 4 Door 4WD, SE 2 Door 2WD, SE 2 Door 4WD, SE 4 Door 2WD, SE 4 Door 4WD, SE RHD 4 Door 2WD, SE RHD 4 Door 4WD, Sport 2 Door 2WD, Sport 2 Door 4WD, Sport 4 Door 2WD, Sport 4 Door 4WD | 6 Cyl 4.0L
View related parts
Jeep Cherokee Ignition Coil
Part Number: V7207293AA
Product Specifications
- Other Name: Coil/Ign-Ignition ; Coil, 4-6-8 Cyl. (Optional W/5234610)
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1997 Jeep Cherokee | 2 Door Sport Utility 2WD, 2 Door Sport Utility 4WD, 4 Door Sport Utility 2WD, 4 Door Sport Utility 4WD, 4 Door Sport Utility RHD 2WD, 4 Door Sport Utility RHD 4WD | 4 Cyl 2.5L, 6 Cyl 4.0L
View related parts
Jeep Cherokee Ignition Coil
Part Number: 4762312
Product Specifications
- Other Name: Coil,Ignition
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1991-1993 Jeep Cherokee | 2 Door Sport Utility 2WD, 2 Door Sport Utility 4WD, 2 Door Sport Utility RHD 4WD, 4 Door Sport Utility 2WD, 4 Door Sport Utility 4WD, 4 Door Sport Utility RHD 4WD | 6 Cyl 4.0L
View related parts
Jeep Cherokee Ignition Coil
Part Number: 33004522
Product Specifications
- Other Name: Coil, Ignition Carbureted Engine
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1987-1993 Jeep Cherokee | 2 Door Sport Utility 2WD, 2 Door Sport Utility 4WD, 4 Door Sport Utility 2WD, 4 Door Sport Utility 4WD | 4 Cyl 2.5L, 6 Cyl 4.2L

Jeep Cherokee Ignition Coil

The Ignition Coil in Jeep Cherokee vehicles play a very important part of making sure it boosts the voltage from the battery to an appropriate level that can ignite the air/fuel mixture in its cylinders. This change occurs after two coils with insulated copper wires are wrapped around a core of iron with the first coil usually connected with the battery while the second coil produces the high voltage that gets to the spark plugs. Jeep Cherokee models throughout the years have had different kinds of Ignition Coils such as the typical single coil, distributor ignition, and contemporary designs such as COP as well as DIS. The main difference with the type of coil systems is based on the design and working mechanism, for instance, COP systems are installed directly at each spark plug while DIS systems shares one coil for two cylinders, then it has a "waste spark". It is important to understand these differences to diagnose problems associated to the Ignition Coil since problems related to it would result to some misfires and poor performance in Jeep Cherokee vehicles.

Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Jeep Cherokee Ignition Coil at great affordable prices. Moreover, all genuine Jeep Cherokee Ignition Coil come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.

Jeep Cherokee Ignition Coil Parts Questions & Experts Answers

Ignition Coil
4797293
Q: How to check and replace the ignition coil on Jeep Cherokee?
A:
To replace the ignition coil on most models, disconnect the negative Battery Cable and locate the ignition coil. If necessary, unscrew the mounting bracket bolts to remove the coil. Disconnect the wires from the coil's terminals. Use an ohmmeter to test the resistance at the primary terminal and ground, the positive and negative primary terminals, and the negative primary and high voltage terminals. If any tests fail, replace the coil. To do so, disconnect the wires from the coil's terminals, remove the mounting bracket bolts and the coil. Install the new coil in reverse order. For 2000 and later inline six-cylinder models, remove and clean the ignition coil rail assembly. Check for damage and test the coil primary resistance at terminals 2 and 1, 2 and 3, and 2 and If the resistance is out of range or if there's damage, replace the entire assembly. To replace, remove the assembly, disconnect the electrical connector, and install the new assembly, ensuring all spark plug boots are properly seated. Secure with mounting bolts and reconnect the electrical connector.
