How to Properly Adjust and Install the Shift Cable on Jeep Liberty?

Firmly apply the parking brake and try to momentarily operate the starter in each shift lever position; the starter should operate in Park and Neutral only. If it operates in any position other than Park or Neutral, adjust the shift linkage. Place the shift lever in Park and remove the center console. Unbolt the shifter assembly from the floor pan and pry the cable end off the pin on the shift lever using a prying tool. Detach the cable from the shifter base by squeezing the tangs on the shift cable retainer. Remove the cable seal plate from the floor pan by taking off the mounting nuts. Raise the vehicle and support it securely on jackstands. Detach the cable end from the shift lever on the transmission, which is connected with a ball-and-socket type connector, by prying the cable end loose from the small pin on the lever. Detach the cable from the bracket at the transmission by pinching the housing tabs together with pliers and pulling the cable and housing through the bracket. Push the cable through the floor pan and remove it from the vehicle. Installation is the reverse of removal, and adjust the cable afterward. Place the shift lever in Park again and remove the center console. Loosen the shifter cable adjustment screw at the shift lever, then raise the vehicle and support it securely on jackstands. Detach the cable end from the shift lever on the transmission and from the bracket at the transmission. Ensure the shift lever on the transmission is all the way to the rear in the last detent, which is the Park position. Verify that the park lock is engaged by trying to rotate the driveshaft; it should not rotate if functioning properly. Recheck that the gearshift lever inside the vehicle is still in the Park position, then attach the cable end to the shift lever on the transmission and the cable to the bracket at the transmission. Tighten the shifter cable adjustment screw at the shifter to 65 in-lbs (7Nm), lower the vehicle, and with the parking brake firmly applied, ensure the engine starts only in Park and Neutral. The remainder of installation follows the reverse of removal.

Genuine Jeep Liberty Shift Cable

Transmission Shift Cable

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Shift Cables found

View related parts

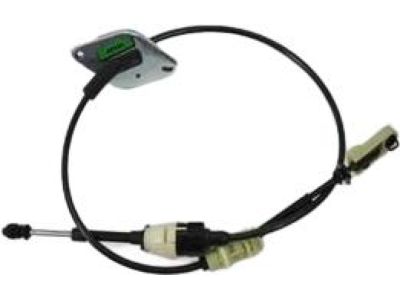

Jeep Liberty Transmission Gearshift Control Cable
Part Number: 52109748AB
$201.38 MSRP: $301.00
You Save: $99.62 (34%)
ADD TO CART
Product Specifications
- Other Name: Cable-Gearshift Control; Shift Control Cable
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2005 Jeep Liberty | Limited Edition 2WD, Limited Edition 4WD, Renegade 2WD, Renegade 4WD, Sport 2WD, Sport 4WD | 6 Cyl 3.7L
View related parts

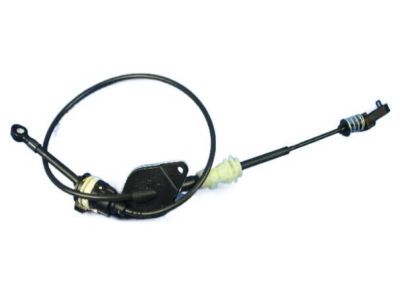

Jeep Liberty Transmission Gearshift Control Cable
Part Number: 52109781AF
$144.00 MSRP: $216.00
You Save: $72.00 (34%)
ADD TO CART
Product Specifications
- Other Name: Cable-Gearshift Control; Shift Control Cable
- Replaces: 52109781AA, 52109781AC, 52109781AB, 52109781AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2012 Jeep Liberty | Limited Edition 2WD, Limited Edition 4WD, Limited JET Edition 2WD, Limited JET Edition 4WD, Renegade 2WD, Renegade 4WD, Sport 2WD, Sport 4WD | 4 Cyl 2.8L Diesel, 6 Cyl 3.7L
View related parts
Jeep Liberty Transmission Gearshift Control Cable
Part Number: 52109781AA
$144.00 MSRP: $216.00
You Save: $72.00 (34%)
ADD TO CART
Product Specifications
- Other Name: Cable-Gearshift Control
- Replaced by: 52109781AF
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006 Jeep Liberty | Limited Edition 2WD, Limited Edition 4WD, Renegade 2WD, Renegade 4WD, Sport 2WD, Sport 4WD | 4 Cyl 2.8L Diesel, 6 Cyl 3.7L
View related parts
Jeep Liberty Transmission Gearshift Control Cable
Part Number: 52109781AD
$144.00 MSRP: $216.00
You Save: $72.00 (34%)
ADD TO CART
Product Specifications
- Other Name: Cable-Gearshift Control
- Replaced by: 52109781AF
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2011 Jeep Liberty | Limited Edition 2WD, Limited Edition 4WD, Renegade 4WD, Sport 2WD, Sport 4WD | 6 Cyl 3.7L
View related parts
Jeep Liberty Transmission Gearshift Control Cable
Part Number: 52109781AC
$144.00 MSRP: $216.00
You Save: $72.00 (34%)
ADD TO CART
Product Specifications
- Other Name: Cable-Gearshift Control
- Replaced by: 52109781AF
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007 Jeep Liberty | Limited Edition 2WD, Limited Edition 4WD, Sport 2WD, Sport 4WD | 6 Cyl 3.7L
View related parts
Jeep Liberty Gear Shift Lock Cable
Part Number: 52125305AC
$84.54 MSRP: $128.00
You Save: $43.46 (34%)
ADD TO CART
Product Specifications
- Other Name: Cable-Gearshift Lock
- Replaced by: 52125305AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2008 Jeep Liberty | Limited Edition 2WD, Limited Edition 4WD, Sport 2WD, Sport 4WD | 6 Cyl 3.7L
View related parts
Jeep Liberty Gear Shift Lock Cable
Part Number: 52104319AC
$82.52 MSRP: $125.00
You Save: $42.48 (34%)
ADD TO CART
Product Specifications
- Other Name: Cable-Gearshift Lock
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2006 Jeep Liberty | Limited Edition 2WD, Limited Edition 4WD, Renegade 2WD, Renegade 4WD, Sport 2WD, Sport 4WD | 4 Cyl 2.8L Diesel, 6 Cyl 3.7L
View related parts
Jeep Liberty Transmission Gearshift Control Cable
Part Number: 52125191AG
$97.97 MSRP: $146.00
You Save: $48.03 (33%)
ADD TO CART
Product Specifications
- Other Name: Cable-Gearshift Control
- Replaced by: 52125191AH
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011-2012 Jeep Liberty
View related parts
Jeep Liberty Transmission Gearshift Control Cable
Part Number: 52104320AA
Product Specifications
- Other Name: Cable-Gearshift Control; Shift Control Cable
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2002-2005 Jeep Liberty | Limited Edition 2WD, Limited Edition 4WD, Renegade 2WD, Renegade 4WD, Sport 2WD, Sport 4WD | 4 Cyl 2.8L Diesel, 6 Cyl 3.7L
View related parts
Jeep Liberty Transmission Gearshift Control Cable
Part Number: 52125191AF
Product Specifications
- Other Name: Cable-Gearshift Control
- Replaced by: 52125191AH
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2010 Jeep Liberty | Sport 2WD, Sport 4WD | 6 Cyl 3.7L
View related parts
Jeep Liberty Transmission Gearshift Control Cable
Part Number: 52109748AA
Product Specifications
- Other Name: Cable-Gearshift Control
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2004 Jeep Liberty | Limited Edition 2WD, Limited Edition 4WD, Renegade 2WD, Renegade 4WD, Sport 2WD, Sport 4WD | 6 Cyl 3.7L

Jeep Liberty Shift Cable

The console shifter and transmission are mechanically linked by the Jeep Liberty Shift Cable. This ensures that every gear engages cleanly, on command. The early years of the Jeep Liberty featured a simple Shift Cable that ran from the floor lever to the manual arm on the transmission. The cable featured a steel core to keep it from stretching. This ensures gears don't slip or get out of alignment. Subsequent iterations of the SUV maintained the reliable Shift Cable configuration. However, they introduced electronic safety measures that prevent the lever from shifting out of Park until the ignition is on and the brake pedal is pressed. Across automatic systems built with the PRNDL sequence and manual setups that prefer cables over exposed linkage rods, the Shift Cable remains center stage. It achieves a quick fork or lever movement inside the gearbox for an instant driver input. Jeep Liberty fans count on the exacting shift action of their vehicle, whether they're cruising the highways or taking the family on rugged paths through nature. When age or distance causes fraying, bending, or slack, replacing the Shift Cable can quickly restore it to like-new function.

Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Jeep Liberty Shift Cable at great affordable prices. Moreover, all genuine Jeep Liberty Shift Cable come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.

Jeep Liberty Shift Cable Parts Questions & Experts Answers

Gear Shift Lock Cable
52104319AC
Q: How to Properly Adjust and Install the Shift Cable on Jeep Liberty?
A:
Firmly apply the parking brake and try to momentarily operate the starter in each shift lever position; the starter should operate in Park and Neutral only. If it operates in any position other than Park or Neutral, adjust the shift linkage. Place the shift lever in Park and remove the center console. Unbolt the shifter assembly from the floor pan and pry the cable end off the pin on the shift lever using a prying tool. Detach the cable from the shifter base by squeezing the tangs on the shift cable retainer. Remove the cable seal plate from the floor pan by taking off the mounting nuts. Raise the vehicle and support it securely on jackstands. Detach the cable end from the shift lever on the transmission, which is connected with a ball-and-socket type connector, by prying the cable end loose from the small pin on the lever. Detach the cable from the bracket at the transmission by pinching the housing tabs together with pliers and pulling the cable and housing through the bracket. Push the cable through the floor pan and remove it from the vehicle. Installation is the reverse of removal, and adjust the cable afterward. Place the shift lever in Park again and remove the center console. Loosen the shifter cable adjustment screw at the shift lever, then raise the vehicle and support it securely on jackstands. Detach the cable end from the shift lever on the transmission and from the bracket at the transmission. Ensure the shift lever on the transmission is all the way to the rear in the last detent, which is the Park position. Verify that the park lock is engaged by trying to rotate the driveshaft; it should not rotate if functioning properly. Recheck that the gearshift lever inside the vehicle is still in the Park position, then attach the cable end to the shift lever on the transmission and the cable to the bracket at the transmission. Tighten the shifter cable adjustment screw at the shifter to 65 in-lbs (7Nm), lower the vehicle, and with the parking brake firmly applied, ensure the engine starts only in Park and Neutral. The remainder of installation follows the reverse of removal.
