How to perform an operating check and remove the power brake booster on Jeep Wrangler?

For the operating check, the brake pedal should be depressed several times with the engine switch off to allow the determination of any change in the amount of pedal reserve distance, and with the engine switch on, the brake pedal should show some slight amount of movement. For the air tightness check, begin by cranking the engine after which you switch off the engine after one or two minutes then step hard on the brake pedal several times slowly; if the pedal goes down farther initially but rises after subsequent depressions, then the booster is airtight. With the power on, apply the brake pedal and turn off the power with the brake pedal depressed; should there be no increase in the pedal reserve travel after 30 seconds the booster is also airtight. When pulling off the power brake booster, do not try to dismantle the part by using tools but just unbolt it; the single ways found to get the part off would require that a bad unit be replaced by a new or rebuilt one. Start by loosening the brake master cylinder form the booster as well as pulling it forward lightly, the next thing is to detach the vacuum hose from the booster but make sure that it is not damaged in the process. Get to the booster end of the pushrod above the brake pedal, unplug the brake light switch wire harness, and for the car models manufactured before 1991, undo the two nuts at the end of the pushrod and withdraw the bolt that came with it while observing its correct orientation which has to be followed later. For 1991 and later models release the retaining clip of the pushrod at the brake pedal. Next, four nuts of the brake booster attached at the fire wall from inside are to be loosened for which a light may perhaps be needed. On the 2007 and later models, it must be pointed out that the booster is attached to an adapter plate, which is in its turn fixed to the engine side of the firewall. Withdraw the booster directly to and away from the firewall Delicately remove the assembly from the existing mounting bracket and then separate the KEY FITTING then fasten the bracket onto the rest of the booster unit tightening the nuts respectively. To install the component, you have to reverse the removal procedure, only make sure to bolt the spacer gasket(s) between the booster mounting bracket and the firewall before tightening the nuts to the recommended torque.

Genuine Jeep Wrangler Brake Booster

Brake Power Booster

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

25 Brake Boosters found

View related parts

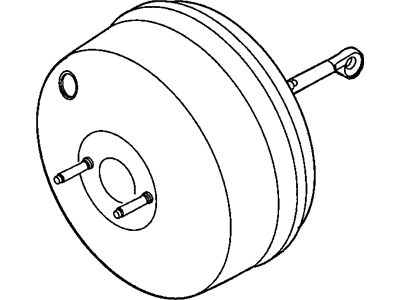

Jeep Wrangler Power Brake Booster
Part Number: 68139853AA
$453.20 MSRP: $688.00
You Save: $234.80 (35%)
ADD TO CART
Product Specifications
- Other Name: Booster Power Brake
- Replaced by: 68139853AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011-2016 Jeep Wrangler | 70th Anniversary, Rubicon, Rubicon 4WD, Sahara, Sahara 4WD, Sport, Sport 4WD, Unlimited Rubicon, Unlimited Rubicon 4WD, Unlimited Sahara 4WD, Unlimited Sport 4WD | 6 Cyl 3.6L, 6 Cyl 3.8L
View related parts
Jeep Wrangler Power Brake Booster
Part Number: 68045999AA
$469.70 MSRP: $712.00
You Save: $242.30 (35%)
ADD TO CART
Product Specifications
- Other Name: Booster Power Brake
- Replaced by: 68045999AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009-2010 Jeep Wrangler | Rubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara 2WD, Unlimited Sahara 4WD, Unlimited Sport 2WD, Unlimited Sport 4WD, Unlimited X 2WD, Unlimited X 4WD, Unlimited X RHD 4WD, X, X RHD | 6 Cyl 3.8L
View related parts
Jeep Wrangler Power Brake Booster
Part Number: 68139853AC
$453.20 MSRP: $688.00
You Save: $234.80 (35%)
ADD TO CART
Product Specifications
- Other Name: Booster-Power Brake; Brake Booster, Power Booster
- Replaces: 68139853AA, 68139853AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011-2018 Jeep Wrangler | 70th Anniversary, Rubicon, Rubicon 4WD, Sahara, Sahara 4WD, Sport, Sport 4WD, Unlimited Rubicon, Unlimited Rubicon 4WD, Unlimited Sahara 4WD, Unlimited Sport 4WD | 6 Cyl 3.6L, 6 Cyl 3.8L
View related parts
Jeep Wrangler Power Brake Booster
Part Number: 68091279AA
$372.90 MSRP: $565.00
You Save: $192.10 (34%)
ADD TO CART
Product Specifications
- Other Name: Booster Power Brake
- Replaced by: 68091279AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011-2017 Jeep Wrangler | 70th Anniversary, Rubicon, Rubicon 4WD, Sahara, Sahara 4WD, Sport, Sport 4WD, Unlimited Rubicon, Unlimited Rubicon 4WD, Unlimited Sahara 4WD, Unlimited Sport 4WD | 6 Cyl 3.6L, 6 Cyl 3.8L
View related parts
Jeep Wrangler Power Brake Booster
Part Number: 68385586AB
$312.20 MSRP: $467.00
You Save: $154.80 (34%)
ADD TO CART
Product Specifications
- Other Name: Booster-Power Brake; Brake Booster, Power Booster
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2018-2025 Jeep Wrangler | Rubicon 4WD, Rubicon Unlimited 4WD, Sahara Unlimited 4WD, Sport 4WD, Sport Unlimited 4WD, Unlimited Rubicon 4WD, Unlimited Sahara 4WD, Unlimited Sport 4WD, Unlimited Sport RHD 4WD | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.0L, 6 Cyl 3.0 L DIESEL, 6 Cyl 3.0L Diesel, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L MILD HYBRID EV-GAS (MHEV), 6 Cyl 3.6L
View related parts
Jeep Wrangler Power Brake Booster
Part Number: 68068521AA
$481.80 MSRP: $731.00
You Save: $249.20 (35%)
ADD TO CART
Product Specifications
- Other Name: Booster Power Brake
- Replaced by: 68068521AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011-2016 Jeep Wrangler | 70th Anniversary, Rubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara 4WD, Unlimited Sport 4WD | 6 Cyl 3.8L
View related parts
Jeep Wrangler Power Brake Booster
Part Number: 68045999AB
$469.70 MSRP: $712.00
You Save: $242.30 (35%)
ADD TO CART
Product Specifications
- Other Name: Booster Power Brake
- Replaced by: 68045999AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011-2016 Jeep Wrangler | 70th Anniversary, Rubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara 4WD, Unlimited Sport 4WD | 6 Cyl 3.8L
View related parts
Jeep Wrangler Power Brake Booster
Part Number: 4798158
$437.76 MSRP: $643.00
You Save: $205.24 (32%)
ADD TO CART
Product Specifications
- Other Name: Booster Power Brake
- Replaced by: 4798158AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1997-1999 Jeep Wrangler | SE | 4 Cyl 2.5L, 6 Cyl 4.0L
View related parts
Jeep Wrangler Power Brake Booster
Part Number: 68045999AD
$469.70 MSRP: $712.00
You Save: $242.30 (35%)
ADD TO CART
Product Specifications
- Other Name: Booster-Power Brake; Brake Booster
- Replaces: 68045999AA, 68045999AB, 68045999AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009-2018 Jeep Wrangler | 70th Anniversary, Rubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara 2WD, Unlimited Sahara 4WD, Unlimited Sport 2WD, Unlimited Sport 4WD, Unlimited X 2WD, Unlimited X 4WD, Unlimited X RHD 4WD, X, X RHD | 6 Cyl 3.8L
View related parts
Jeep Wrangler Power Brake
Part Number: 68465215AA
$267.19 MSRP: $377.00
You Save: $109.81 (30%)
ADD TO CART
Product Specifications
- Other Name: Brake Booster, Power Booster
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2022-2024 Jeep Wrangler | 8 Cyl 6.4 L GAS
View related parts
Jeep Wrangler Power Brake Booster
Part Number: 68091279AC
$372.90 MSRP: $565.00
You Save: $192.10 (34%)
ADD TO CART
Product Specifications
- Other Name: Booster-Power Brake; Brake Booster, Power Booster
- Replaces: 68091279AB, 68091279AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011-2018 Jeep Wrangler | 70th Anniversary, Rubicon, Rubicon 4WD, Sahara, Sahara 4WD, Sport, Sport 4WD, Unlimited Rubicon, Unlimited Rubicon 4WD, Unlimited Sahara 4WD, Unlimited Sport 4WD | 6 Cyl 3.6L, 6 Cyl 3.8L
View related parts
Jeep Wrangler Power Brake Booster
Part Number: 68068521AC
$481.80 MSRP: $731.00
You Save: $249.20 (35%)
ADD TO CART
Product Specifications
- Other Name: Booster-Power Brake; Brake Booster, Power Booster
- Replaces: 68068521AA, 68068521AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011-2018 Jeep Wrangler | 70th Anniversary, Rubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara 4WD, Unlimited Sport 4WD | 6 Cyl 3.8L
View related parts
Jeep Wrangler Power Brake Booster
Part Number: 68385584AB
$326.70 MSRP: $495.00
You Save: $168.30 (34%)
ADD TO CART
Product Specifications
- Other Name: Booster-Power Brake; Brake Booster, Power Booster
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2018-2025 Jeep Wrangler | Rubicon 4WD, Sport 4WD | 4 Cyl 2.0 L GAS, 4 Cyl 2.0L, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L MILD HYBRID EV-GAS (MHEV), 6 Cyl 3.6L
View related parts
Jeep Wrangler Power Brake Booster
Part Number: 68139853AB
$453.20 MSRP: $688.00
You Save: $234.80 (35%)
ADD TO CART
Product Specifications
- Other Name: Booster Power Brake
- Replaced by: 68139853AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017 Jeep Wrangler | Rubicon 4WD, Sahara 4WD, Sport 4WD, Unlimited Rubicon 4WD, Unlimited Sahara 4WD, Unlimited Sport 4WD | 6 Cyl 3.6L
View related parts
Jeep Wrangler Power Brake Booster
Part Number: 68045999AC
$469.70 MSRP: $712.00
You Save: $242.30 (35%)
ADD TO CART
Product Specifications
- Other Name: Booster Power Brake
- Replaced by: 68045999AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017 Jeep Wrangler
View related parts
Jeep Wrangler Power Brake Booster
Part Number: 68068521AB
$481.80 MSRP: $731.00
You Save: $249.20 (35%)
ADD TO CART
Product Specifications
- Other Name: Booster Power Brake
- Replaced by: 68068521AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017 Jeep Wrangler
View related parts
Jeep Wrangler Power Brake Booster
Part Number: 68618418AB
$1435.50 MSRP: $2175.00
You Save: $739.50 (34%)
ADD TO CART
Product Specifications
- Other Name: BOOSTER-POWER BRAKE; Brake Booster
- Replaced by: 68618418AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2023 Jeep Wrangler | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Jeep Wrangler Power Brake Booster
Part Number: 68644596AB
$1468.50 MSRP: $2230.00
You Save: $761.50 (35%)
ADD TO CART
Product Specifications
- Other Name: BOOSTER-POWER BRAKE; Brake Booster, Power Booster
- Replaced by: 68671807AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2024-2025 Jeep Wrangler | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Jeep Wrangler Power Brake
Part Number: 68568388AD
$563.16 MSRP: $828.00
You Save: $264.84 (32%)
ADD TO CART
Product Specifications
- Other Name: Brake Booster, Modulator Valve, Power Booster
- Replaces: 68568388AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2022-2023 Jeep Wrangler | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Jeep Wrangler Booster, Brake
Part Number: 4723133
Product Specifications
- Other Name: Brake Booster
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1994-1995 Jeep Wrangler | Sport Utility 4WD | 4 Cyl 2.5L, 6 Cyl 4.0L

| Page 1 of 2 |Next >

1-20 of 25 Results

Jeep Wrangler Brake Booster

The Brake Booster is another component in Jeep Wrangler cars whose primary function is to improve the braking system resulting to reduced effort by the driver. It mainly work through a vacuum mechanism that magnifies the force exerted in the brake pedal hence transmitting it to the master cylinder. This system makes it possible to have effective and controlled braking system on the vehicle. The brake boosters have for long been integrated in Jeep Wrangler models and they use both vacuum and hydraulic systems. Vacuum boosters are normally very dependable but can go bad at times while hydraulic boosters make use of fluid force from the power steering pump or an electric array. The ability to pick single or dual diaphragm boosters and different diameters mean all can be altered depending on performance required, especially for disc or drum brakes. In fact, Brake Booster plays a very important role in the driving experience of Jeep Wrangler vehicles.

Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Jeep Wrangler Brake Booster at great affordable prices. Moreover, all genuine Jeep Wrangler Brake Booster come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.

Jeep Wrangler Brake Booster Parts Questions & Experts Answers

Power Brake Booster
68045999AB
Q: How to perform an operating check and remove the power brake booster on Jeep Wrangler?
A:
For the operating check, the brake pedal should be depressed several times with the engine switch off to allow the determination of any change in the amount of pedal reserve distance, and with the engine switch on, the brake pedal should show some slight amount of movement. For the air tightness check, begin by cranking the engine after which you switch off the engine after one or two minutes then step hard on the brake pedal several times slowly; if the pedal goes down farther initially but rises after subsequent depressions, then the booster is airtight. With the power on, apply the brake pedal and turn off the power with the brake pedal depressed; should there be no increase in the pedal reserve travel after 30 seconds the booster is also airtight. When pulling off the power brake booster, do not try to dismantle the part by using tools but just unbolt it; the single ways found to get the part off would require that a bad unit be replaced by a new or rebuilt one. Start by loosening the Brake Master Cylinder form the booster as well as pulling it forward lightly, the next thing is to detach the vacuum hose from the booster but make sure that it is not damaged in the process. Get to the booster end of the pushrod above the brake pedal, unplug the brake light switch wire harness, and for the car models manufactured before 1991, undo the two nuts at the end of the pushrod and withdraw the bolt that came with it while observing its correct orientation which has to be followed later. For 1991 and later models release the retaining clip of the pushrod at the brake pedal. Next, four nuts of the brake booster attached at the fire wall from inside are to be loosened for which a light may perhaps be needed. On the 2007 and later models, it must be pointed out that the booster is attached to an adapter plate, which is in its turn fixed to the engine side of the firewall. Withdraw the booster directly to and away from the firewall Delicately remove the assembly from the existing mounting bracket and then separate the KEY FITTING then fasten the bracket onto the rest of the booster unit tightening the nuts respectively. To install the component, you have to reverse the removal procedure, only make sure to bolt the spacer gasket(s) between the booster mounting bracket and the firewall before tightening the nuts to the recommended torque.
