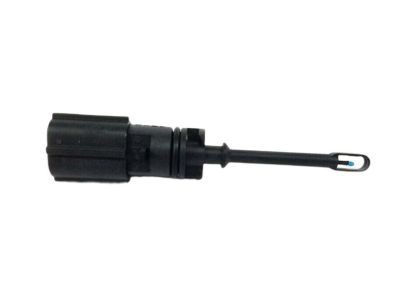

Mopar 5149279AB Sensor-Charge Air Temp

You can Select Your Vehicle to check if 5149279AB fits your vehicle.

On 3.7L V6 and 4.7L VB engines, the Intake Manifold Temperature sensor is located on the left side of the intake manifold, while on 3.6L V6 engines, it is located on the air intake tube before the throttle body. For Hemi engines, the Intake Manifold Temperature sensor is located at the right front corner of the air resonator box on 2010 and earlier engines, and at the rear side of the air intake tube on 2011 and later engines. To remove the Intake Manifold Temperature sensor, disconnect the electrical connector by depressing the tab and pulling it off. Lift up the release tab slightly, rotate the sensor counterclockwise 1/4-turn, and pull it out. Remove the old O-ring from the Intake Manifold Temperature sensor and inspect it for damage. If necessary, replace the O-ring. To install the Intake Manifold Temperature sensor, insert it into its mounting hole and rotate it clockwise 1/4-turn, ensuring that the release tab locks it into place.
