Question 1

How to remove and install an axle shaft on Dodge Durango?

Accepted Answer

Loosen the wheel lug nuts, raise the vehicle, and support it securely on jackstands. Remove the wheel, brake caliper, caliper mounting bracket and rotor. Remove the cover from the differential housing and allow the oil to drain into a container. Remove the lock bolt from the differential pinion shaft. Remove the pinion shaft. Push the outer (flanged) end of the axleshaft in and remove the the C-lock from the inner end of the shaft. Withdraw the axleshaft, taking care not to damage the oil seal in the end of the axle housing as the splined end of the axleshaft passes through it (unless, of course, you are going to replace the seal anyway). Installation is the reverse of removal. Apply a non-hardening thread-locking compound to the threads of the lock bolt, then tighten the lock bolt. When installing the axleshaft, be sure to lubricate the seal lip and the bore in the axle bearing with clean differential lubricant. Clean off all traces of old gasket material from the differential cover and axle housing, then apply a bead of RTV sealant to the cover install the cover and bolts, tightening the bolts. Refill the axle with the correct quantity and grade of lubricant. Tighten the wheel lug nuts.

Question 2

What Role Does the Axle Shaft Play in Front and Rear Axle Assemblies on Dodge Dakota?

Accepted Answer

The rear axle assembly is a hybrid, semi-floating type with a casting differential carrier and pressed steel cover. The axle tubes are made of steel and pressed and welded into the carrier. An optional locking rear axle is available, which utilizes multi-disc clutch packs to lock both axleshafts together, providing equal rotational power to both wheels when one loses traction. On 4WD models, a fully independent front axle assembly is used, consisting of a differential, two axle shafts, and a pair of driveaxles with inner and outer Constant Velocity (CV) joints. To accommodate the offset differential, an extended axleshaft is employed on the right side. Before assuming an axle problem, a thorough check should be performed as noises commonly associated with axle diagnosis procedures can be caused by road surface, tire wear or pressure, or engine and transmission issues. Overhaul and general repair of the front or rear axle differential is beyond the scope of this description.

Question 3

How to remove and install an axle shaft on Dodge Neon?

Accepted Answer

If you want to take out the axle shaft, get rid of the hub nut cotter pin and get a new one in case of reattaching the axle. Set the parking brake down really well and with the spare tire still on, consult a large socket and breaker bar to loosen the axle shaft/hub nut. Finally, remove the front wheel by unscrewing the nuts of the wheel lugs, lift the car by use of a jack, and ensure it is well supported by jack stands. While it's not necessary to drain the transaxle lubricant, it is recommended that, if the time is due in terms of mileage, then it should be done. Disconnect the tie-rod end from the knuckle, as well as the ball joint bolt and nut from the knuckle; pull the lower control arm down to release the assembly. To release the axle shaft from the connectors of the hub splines, it is necessary to put the end lightly and carefully to the hammer; if the axle shaft remains strongly fixed, then it is required to apply a puller. Screw off the outer CV-joint nut and pull out on the steering knuckle in order to detach the axle shaft from the hub if needed, then hook the outer end of the axle shaft with a bungee cord or wire. Be sure to look at the left side of the differential for evidence of lubricant leakage around the seal; if the axle shaft has not yet been removed, it may be taken out and the seal replaced before continuing. To remove the right axle shaft, place a pry bar under and against the inner joint to pry the same off the transaxle side gear and its corresponding retaining clip; care has to be taken not to pull the inner joint as this may lead to destruction of the same. Lift up the axle shaft assembly whilst avoiding the exhaustion of the inner joint or damaging the axle shaft boots. The same can be done for the left axle shaft and it is important to pull straight out not to cause any problems. If the vehicle is to be moved while the axle shaft is removed, fit a large bolt with the washers through the hub then tighten the nut. For installation of the new or cleaned joint, reverse the above stated removal procedures, spread an even lip of multi-purpose grease on the splines of the inner joint. When installing it is important to hold the axle shaft straight and push it in sharply to ensure that the snap ring is seated in the groove in the transaxle side gear. Thus, it is recommended that one pull the axle shaft out by hand to check the seating of the snap-ring. Scrape or wipe off any foreign materials deposited on the threads of the axle shaft outer CV joint after which the spring washer and the nut should be fitted before tightening the hub nut within the recommended torque. Last, place nut lock and the next cotter pin and dam it by bending the ends right off, fit new wheel with lugs nut and slowly drop the vehicle and tighten the lugs nuts to the right torque while pouring in the transaxle lubricant if necessary.

Genuine Dodge Axle Shaft

559 Axle Shafts found

Dodge Axle Half Shaft

Dodge Front Drive Shaft

Dodge Axle Half Shaft

Dodge Axle Half Shaft

Dodge Axle Half Shaft

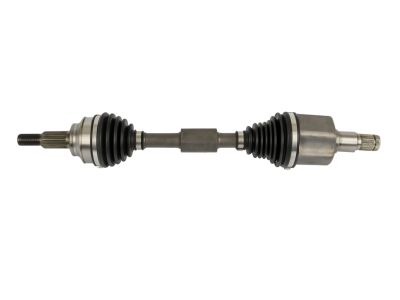

Dodge Cv Axle Assembly-Joint Half Shaft Left, Front Left

Dodge Axle Half Shaft

Dodge Axle Shaft Assembly Replaces

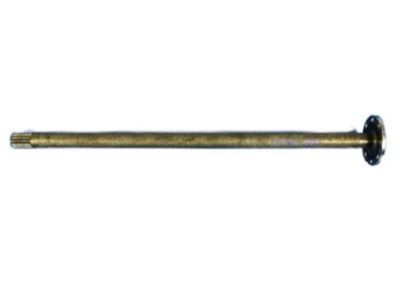

Dodge Rear Axle Shaft

Dodge Cv Intermediate Shaft Rear

Dodge Axle Half Shaft

Dodge Axle Half Shaft

Dodge Rear Axle Assembly Or Cv Shaft

Dodge Front Drive Shaft Right

Dodge Front Drivers Side Half Axle Shaft

Dodge Axle Half Shaft

Dodge Axle Half Shaft

Dodge Axle Half Shaft

Dodge Axle Half Shaft

Dodge Front Drive Shaft

Dodge Axle Shaft
